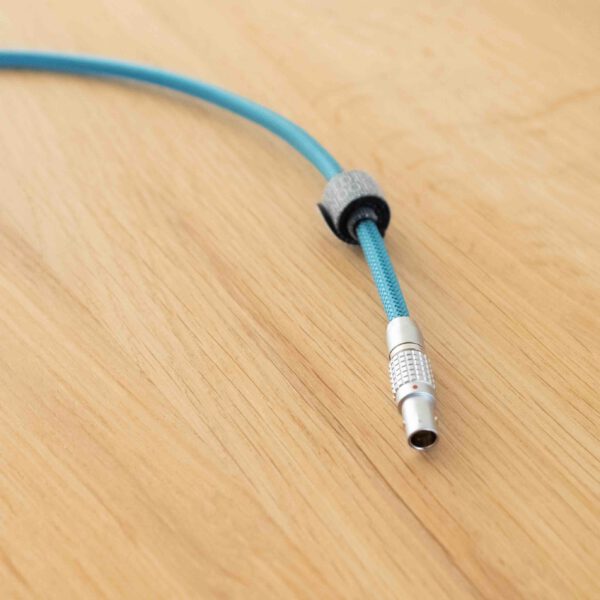

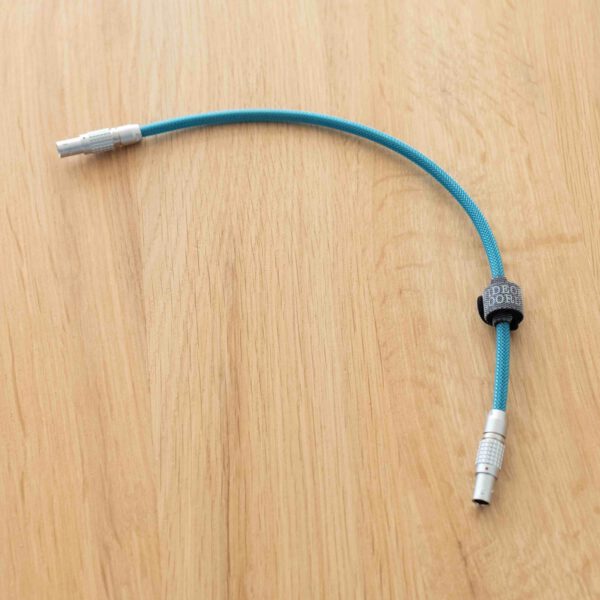

LEMO 2-pin for SmallHD, Teradek, Vaxis, Paralinx, Ovide KOKO etc.
The LEMO 0B 2-pin connector is rated for 5A and is wired to “ARRI Standard”, pin-1 GND and pin-2 VCC by default. This means that the pin next to the red dot is ground.
Mini XLR 4-pin for TVLogic only.
The Neutrik Mini XLR connector is rated for 5A and is wired with pin-2 GND and pin-3 VCC by default.
DC Barrel (with locking 90°) for SmallHD, PIX-E5/E7, Atomos, Blackmagic Video Assist 12G, Hollyland etc.
The DC Barrel 2.1mm ID 5.5mm OD connector is wired with outside GND and center pin VCC by default.
Most cable orders typically have a lead time of up to two weeks for most assemblies, but extended lead times may occur without prior notice. Due to the duration of the lead time, orders cannot be canceled. If you require a cable by a specific time or date, it is highly recommended to send an email for lead time inquiries.
